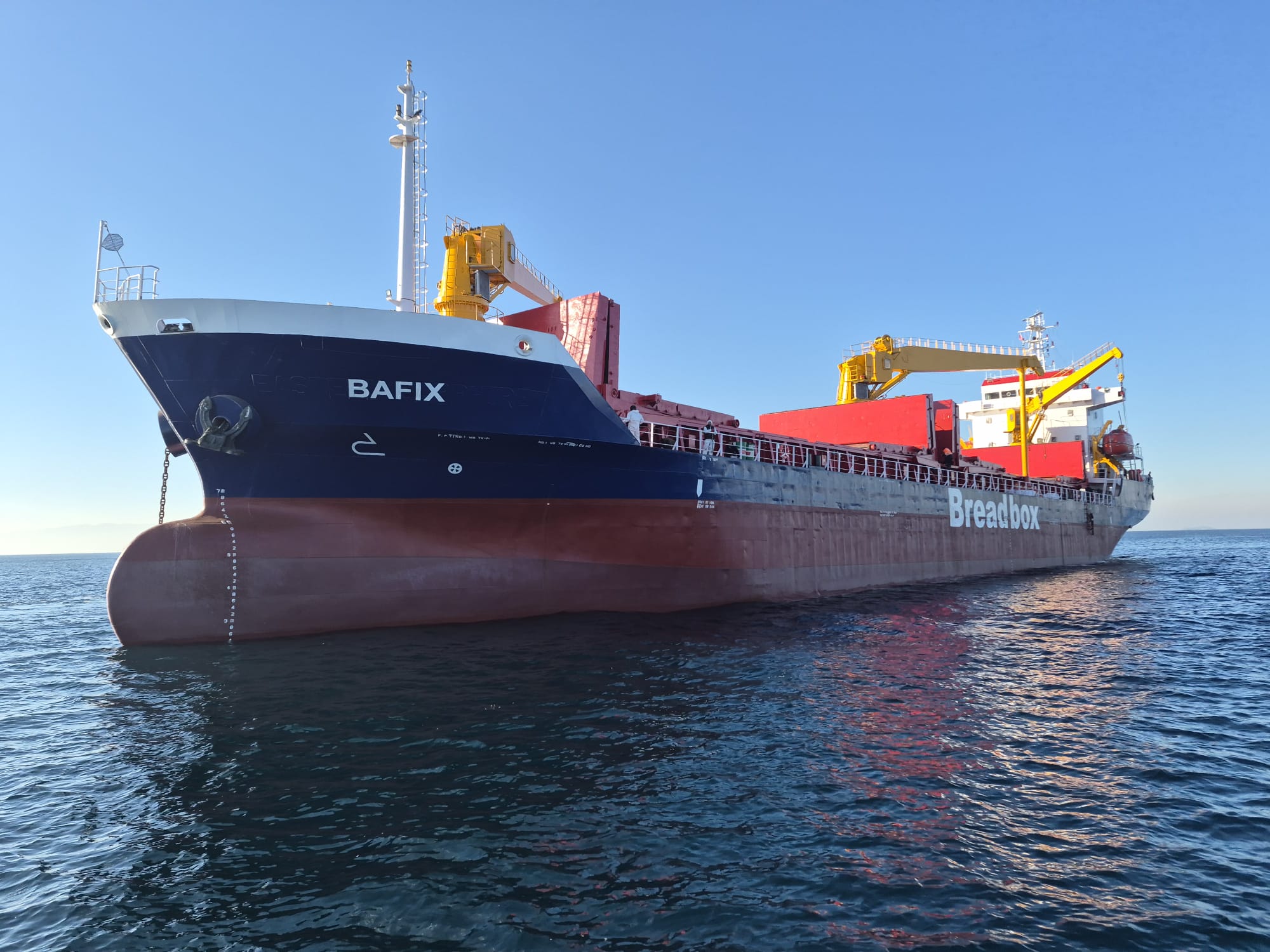

NameBAFIX
FlagVanuatu
Port of RegistryPort Vila
IMO Number9458665
Call Sign
MMSI Number314001053
ClassificationCRS (IACS)
Class Notation★ CSA General Dry Cargo Ship; Strengthened for Heavy Cargoes; Ice Class B, ★ CSM
TypeGeneral Cargo
Built Date2009
ShipyardWEIHAI DONGHAI SHIPYARD CO., LTD.
P&I Insured byHYDOR
H&M Insured byHYDOR
Sailing AreaA1 + A2 + A3
Ice ClassIce Class B
Deadweight6607
GRT / NRT4425 / 2526
Lightship2364.1 MT
LOA / LBP104.2 / 97.5 m
Breadth17.20 m
Summer Draft6.60 m
Freeboard1.90 m
Depth Moulded8.50 m
Air Draft in Ballast24.75 m
Height from Keel to Mast31.35 m
FW Allowance181.6 mm
TPC SSW15.5 t/cm
Distance WLHC in Ballast8.36 m
DWCC6300 mt
Number of Holds & Hatches2 Holds & 2 Hatches
Grain Hold 13500 CBM - 123.603 CBFT
Grain Hold 26500 CBM - 229.586 CBFT
Grain Total10000 CBM - 353.189 CBFT
Bale Hold 13480 CBM - 122.899 CBFT
Bale Hold 26450 CBM - 227.821 CBFT
Bale Total9930 CBM - 350.720 CBFT
Hatch TypePontoon type
Hatch 1 Dimensions22.00 m x 14.00 m
Hatch 2 Dimensions38.00 m x 14.00 m
Hold 1 Dimensions24.00 m x 14.00 m
Hold 2 Dimensions40.00 m x 14.00 m
GearsNIL
Tank Top Strength12.0 mt/m²
Floor Spacexxx under deck / xxx on deck
Holds VentilationsNatural
Movable BulkheadNo
Container Capacity-
Eco Speed - Laden9.0 Knots
Eco Speed - Ballast10.0 Knots
Eco Speed Consumption5.0 mt MGO + 0.5 mt MGO
Full Speed - Laden10.5 Knots
Full Speed - Ballast11.0 Knots
Full Speed Consumption5.8 mt MGO + 0.6 mt MGO
Idle at Port0.6 mt MGO
Work at Port1.3 mt MGO
Main EngineDAIHATSU 8DKM-28
Main Engine Power1 x 2300 kW at 750 rpm
Reduction Gear
Auxiliary Engine3 x 300 kW
Emergency Generator1 x 75 kW
BowthrusterFitted
Propeller1 x 4 Blades Fixed Pitch
Shaft GeneratorNIL
